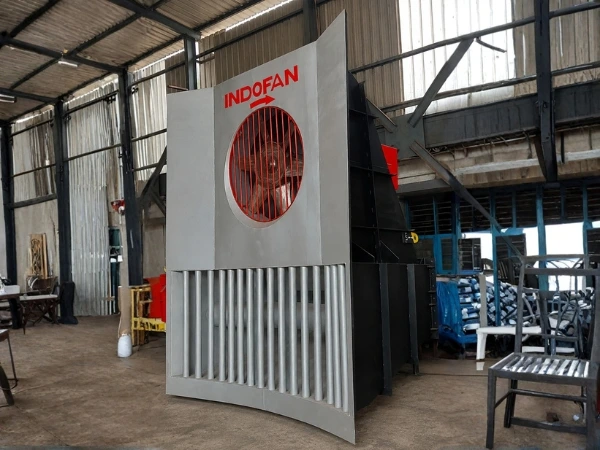

Advanced Powered Side Draft Hood Systems
A Powered Side Draft Hood is an advanced industrial fume extraction system designed to capture smoke, fumes, dust, and airborne contaminants directly at their source.
Unlike conventional canopy hoods that rely on natural upward movement of hot gases, a powered side draft hood uses a dedicated high-capacity fan to create a strong directional airflow that draws pollutants horizontally into the extraction system.
By removing contaminants before they spread into the workplace, the system improves air quality, enhances worker safety, and helps industries comply with environmental regulations.
An Efficient Fume Extraction Mechanism: How does it work?
The Powered Side Draft Hood operates on the principle of source capture, where the hood is strategically positioned near the emission point to collect smoke, fumes, and dust generated during industrial processes.
A specially designed axial flow fan integrated within the hood creates a strong suction field that directs contaminants toward the hood opening, while a downstream centrifugal blower connected to a dust collection or filtration system maintains continuous negative pressure throughout the ducting network.
- 1. Hood Fan + Centrifugal Blower – Work together to capture emissions efficiently during charging, melting, pouring, and other operations.
- 2. Induction Furnace Use – Hood can be mounted on a motorized rotating system for precise positioning over fume generation areas.
- 3. Pollutant Conveyance – Captured emissions move through ducting to dust collectors, bag filters, wet scrubbers, or other APC equipment.
- 4. Clean Air Discharge – Particulate matter and contaminants are removed before safe air is released back into the workplace.
Reliable Industrial Fume Extraction Hood Solutions

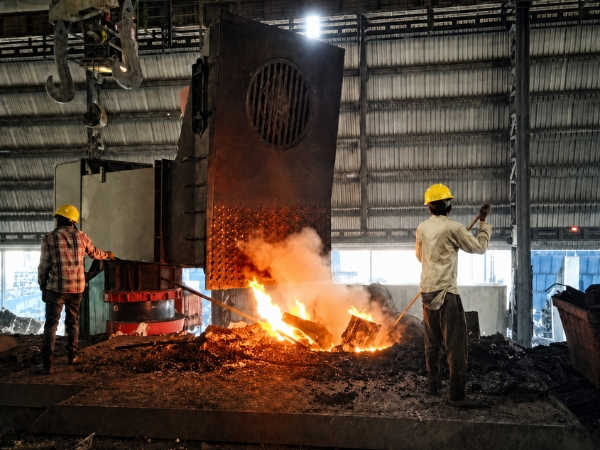

INDOFAN Powered Side Draft Hoods are engineered for induction furnace applications, providing direct source capture of smoke and fumes. Designed for efficient operation during charging, melting, refining, these systems reduce fugitive emissions and improve workplace air quality.
Our hoods deliver suction efficiency of 80–90%, depending on furnace layout and operating conditions. As part of advanced ventilation systems, they capture fumes at the point of generation, ensuring a cleaner, safer environment and compliance with environmental standards.

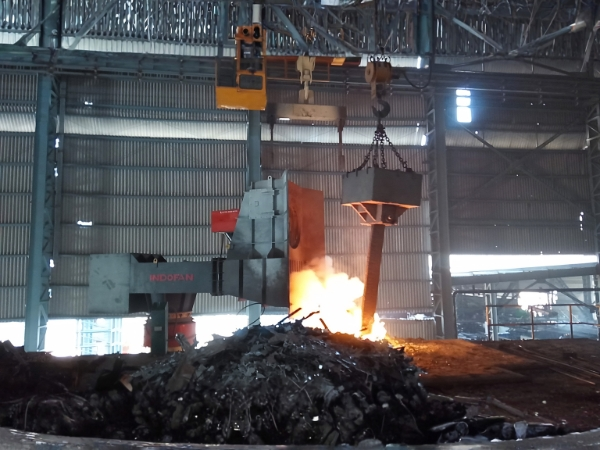

Engineered for Continuous Furnace Operations
Unlike conventional canopy hoods that may interfere with furnace operations, the INDOFAN Powered Side Draft Hood is specifically designed to allow uninterrupted production activities.
The hood remains in its operating position during:

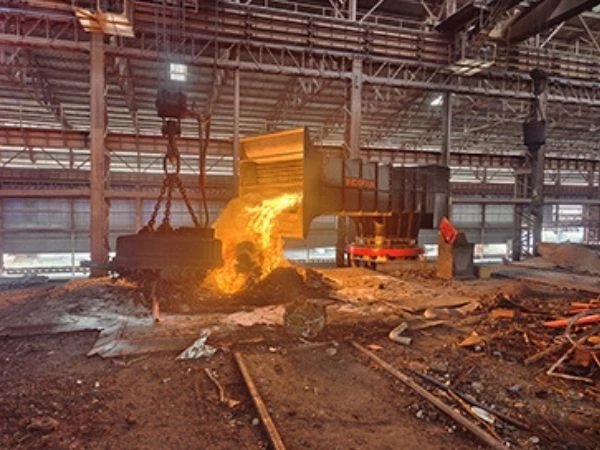

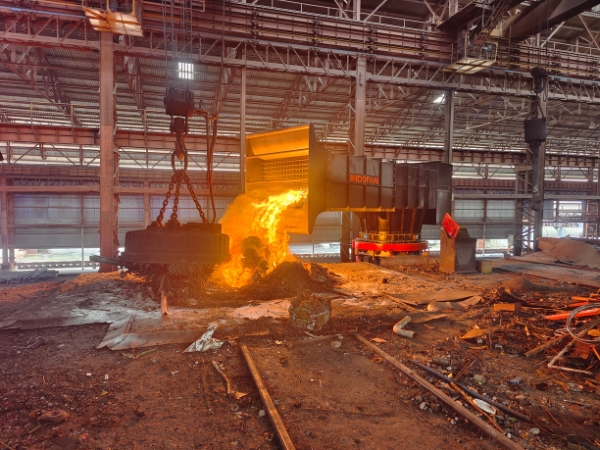

- • Magnet charging operations
- • Poker rod manipulation during melting
- • Routine furnace operations
This eliminates the need for frequent hood repositioning, resulting in improved operational convenience, reduced downtime, and enhanced productivity.

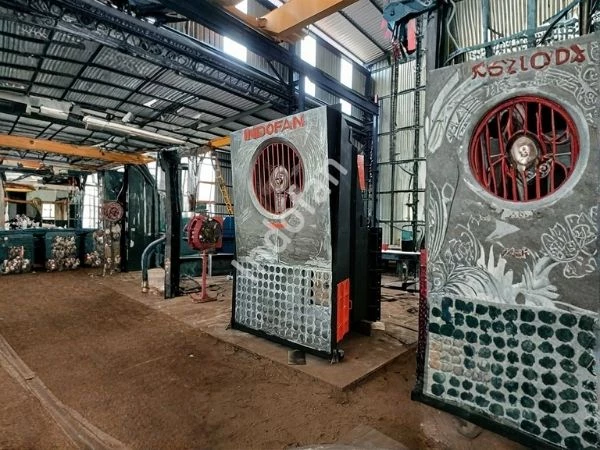

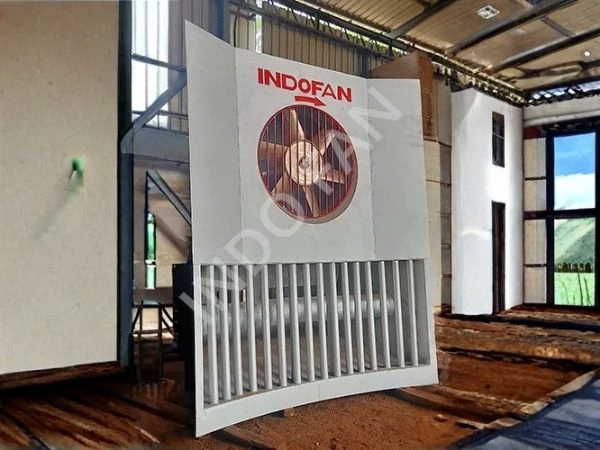

Advanced Fume Extraction Solutions: Side Draft Hood
Superior Capture Efficiency
Our side draft hood systems are engineered to capture airborne contaminants at the source before they disperse into the workplace environment. Unlike overhead canopy designs, our fume extraction system draws pollutants horizontally across the operator's breathing zone with minimal airflow volume. This industrial exhaust hood configuration is ideal for welding stations, chemical processing benches, and grinding operations where overhead obstructions prevent effective top-down extraction.
Constructed from heavy-gauge galvanized steel and stainless steel 304/316., our dust collection hood withstands aggressive chemical fumes, high temperature and abrasive particulate loading.
As part of an effective industrial ventilation system, adjustable baffle plates and sliding face openings allow operators to customize the capture aperture based on workpiece dimensions, ensuring maximum contaminant containment with optimized energy consumption.
Powered Ventilation Design
Each powered side draft hood integrates a high-static centrifugal blower directly into the hood assembly, eliminating the need for extensive ductwork runs and reducing system pressure losses. Our fume extraction hood delivers immediate negative pressure at the face opening, capturing welding smoke, solvent vapors, acid mists, and fine dust particles before they reach worker exposure zones.
As leading exhaust hood manufacturers, we equip every industrial exhaust hood with spark-resistant construction, fire-rated dampers, and activated carbon filtration modules. The integrated blower motor assembly features TEFC or explosion-proof enclosures for hazardous location compliance, while variable frequency drives enable precise airflow modulation based on real-time process demands within advanced industrial ventilation systems.
Why Choose INDOFAN?
Custom Engineering
With decades of experience in industrial ventilation and air pollution control systems, INDOFAN delivers customized fume extraction solutions tailored to the specific requirements of metal melting and foundry industries.
Our engineering team carefully evaluates furnace capacity, plant layout, emission characteristics, and operational requirements to design the most effective extraction system for your application.
Industry Used
Whether for steel melting, alloy production, copper recycling, aluminum recycling, or foundry operations, INDOFAN Powered Side Draft Hoods provide dependable performance, superior fume capture efficiency, and long-term operational reliability.
Frequently Asked Questions
What is a powered side draft hood used for?
A powered side draft hood is used for capturing furnace smoke and fumes during induction furnace operations, ensuring efficient industrial exhaust, improved air quality, and safer working environments consistently across applications, as offered by leading industrial exhaust hood manufacturers.
How effective is the fume extraction system?
The fume extraction system provides suction efficiency between 80% and 90%, depending on industrial site conditions, ensuring reliable smoke removal, improved ventilation, and consistent performance across furnace operations effectively.
Can magnet charging be performed without moving the hood?
Yes, magnet charging operations can be performed without moving the industrial exhaust hood, ensuring operational convenience, uninterrupted furnace performance, and efficient smoke extraction during continuous industrial processes effectively.
Is poker rod manipulation possible with this hood system?
Yes, poker rod and manipulator operations can be performed conveniently without moving the fume extraction hood, ensuring operational flexibility, improved furnace handling, and reliable smoke removal during industrial processes effectively.
Where are side draft hood systems commonly installed?
Side draft hood systems are commonly installed in induction furnaces, foundries, metal processing plants, and industrial exhaust applications, ensuring efficient smoke capture, reliable ventilation, and safer working environments consistently across industries.
